Product Description

Main features


1. Fast particle size reduction from 300mm to 2mm in food and chemical industries
2. Product size: 0.5-20 mm
3. Process capacity: 80-1500 kg/h
4. Dust collector can be equipped
5. Product particle size is adjustable by changing sieves


Working principle



CSJ series rotary knife grinding machine, which consists of feed hopper, rotary and stator knives, bottom sieves and/or dust collector, is designed for fast particle size reduction from 300mm to 2mm mainly for food products. The material to be processed falls into the cutting chamber via a guide chute and is shredded by cutting between rotating and fixed knives until it passes an attached sieve as ground product. The sieve extends over the lower half of the grinding chamber and can be easily changed. Final particle size is determined by the hole size of sieves.

CSJ series rotary knife grinding machine is most often used for cut corn, spices, roots, dried herbs and other soft to middle-hard materials in food and chemical industry into accurately controlled size or before fine grinding.
Rotary knife cutter mill for dried fruits and vegetables supplier
Rotary knife cutter mill for dried fruits and vegetables details

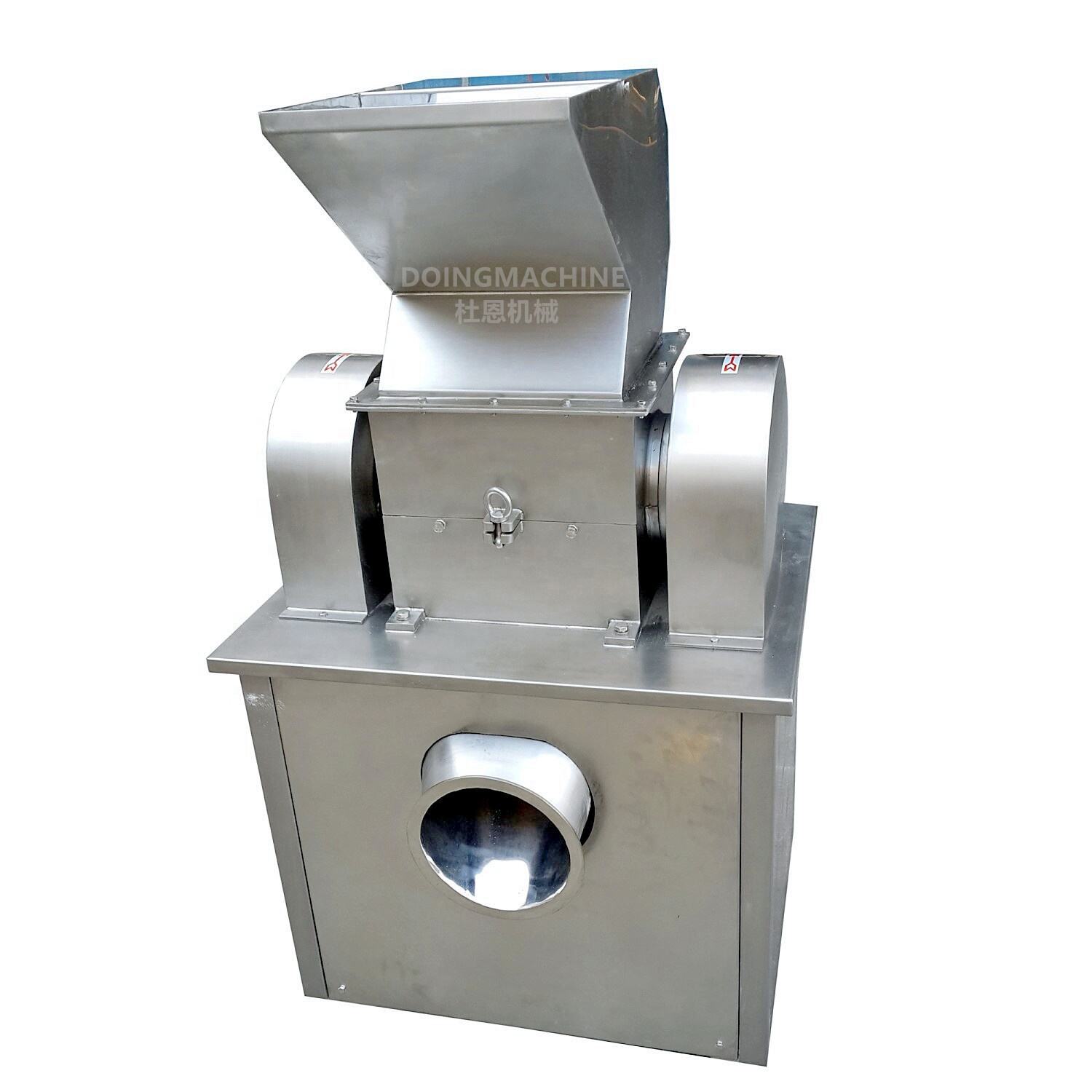

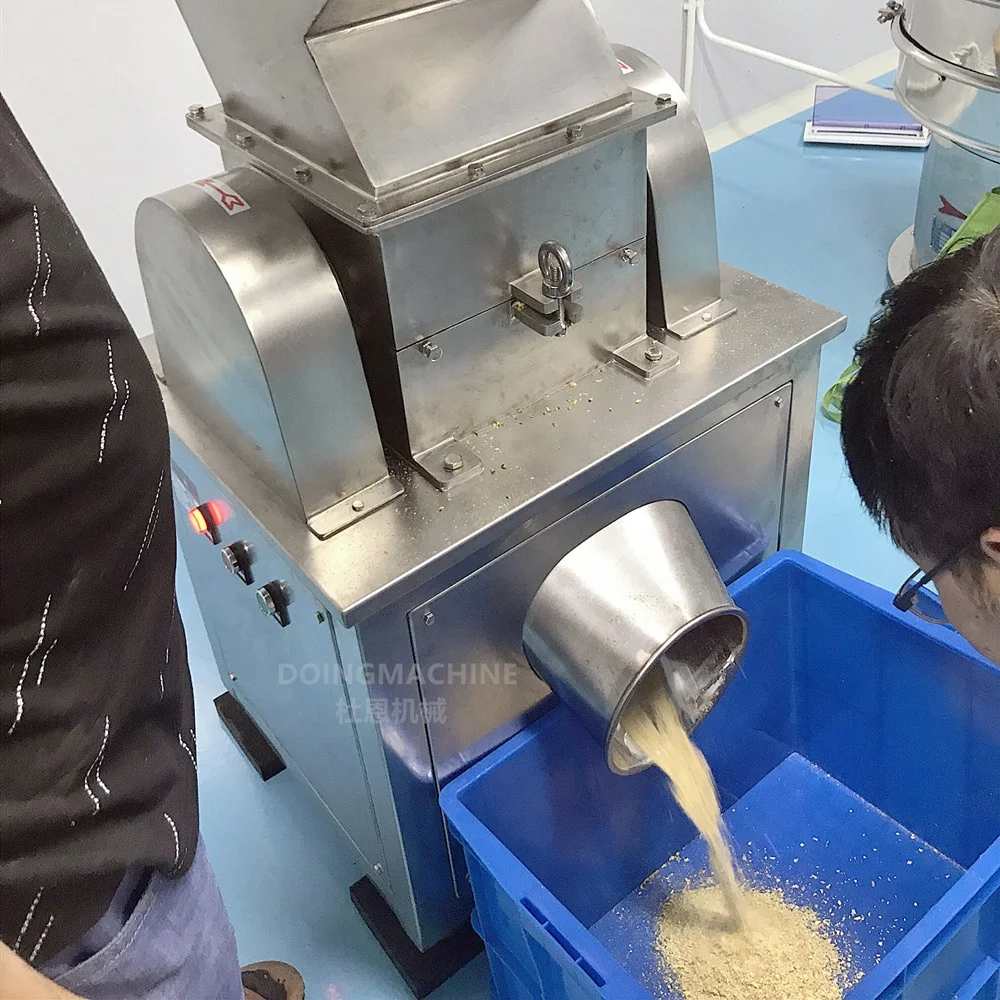

               Single cutter mill

Rotary knife cutter mill for dried fruits and vegetables details

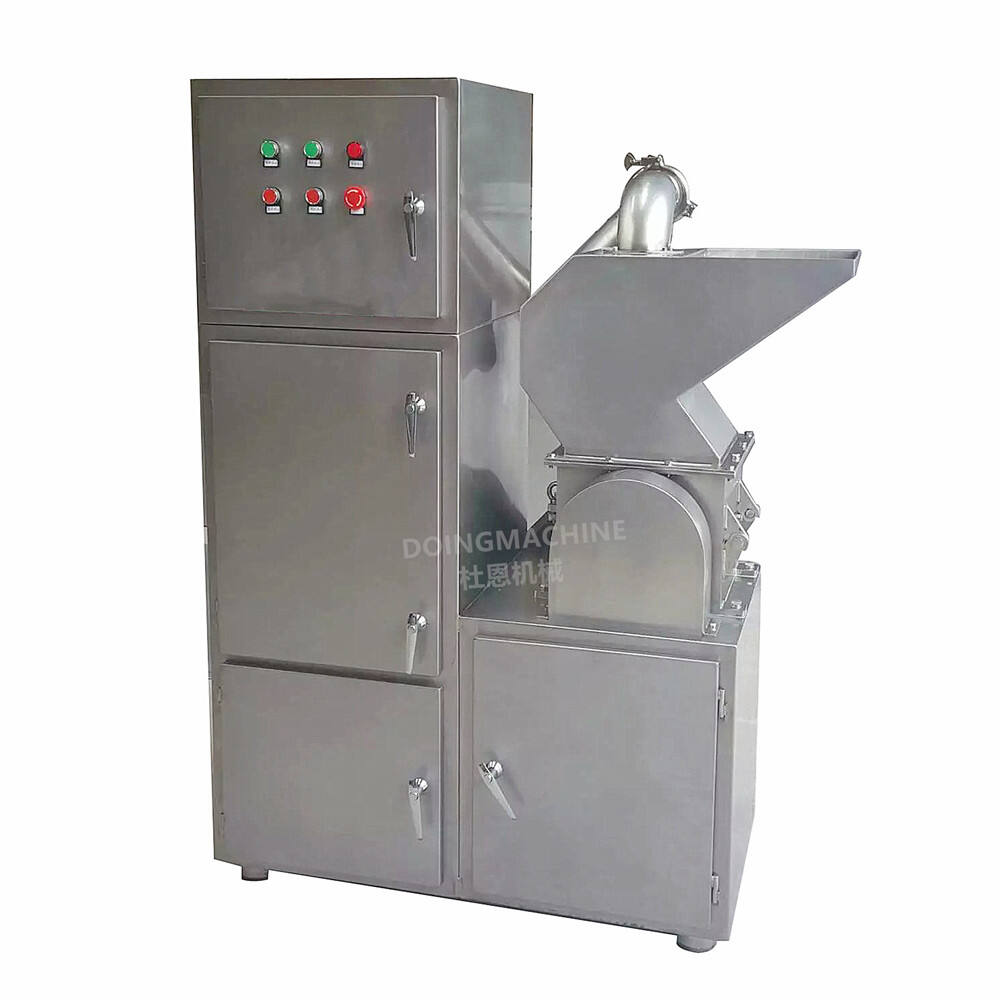

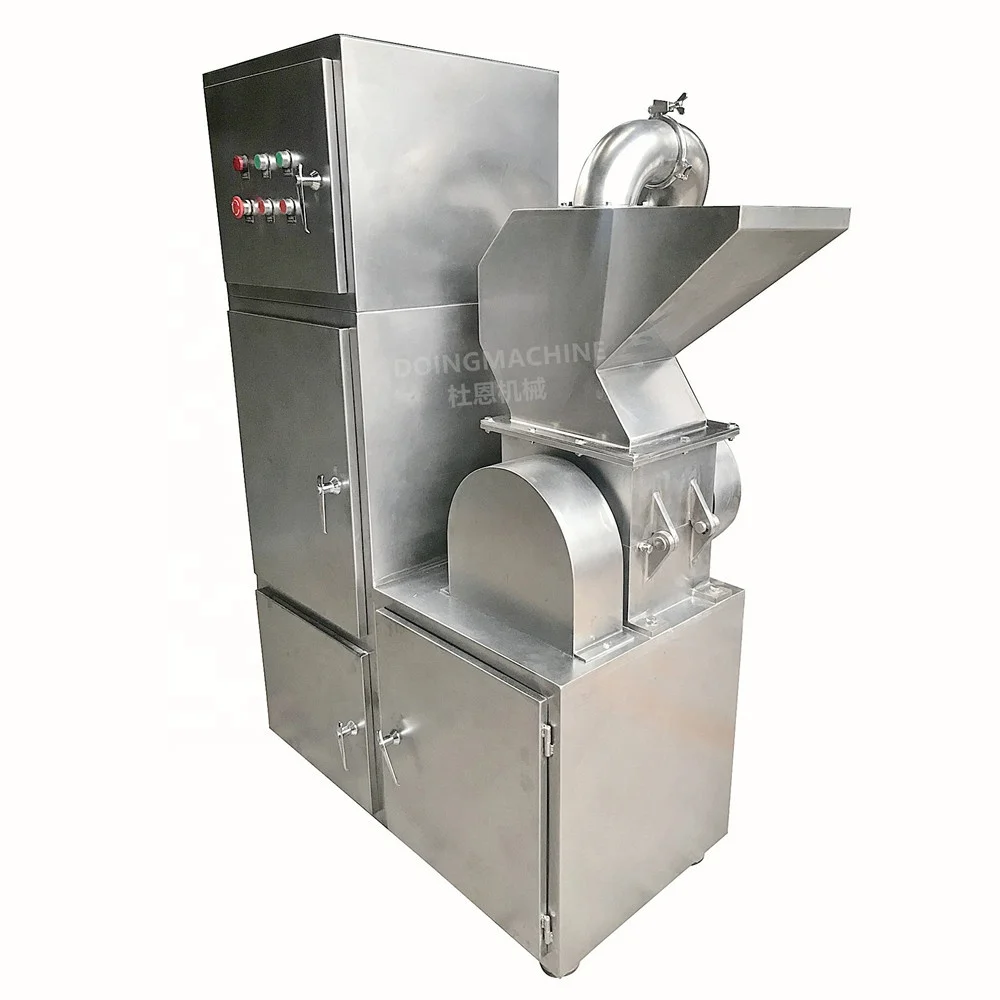

       Cutter mill with dust collector

Rotary knife cutter mill for dried fruits and vegetables manufacture

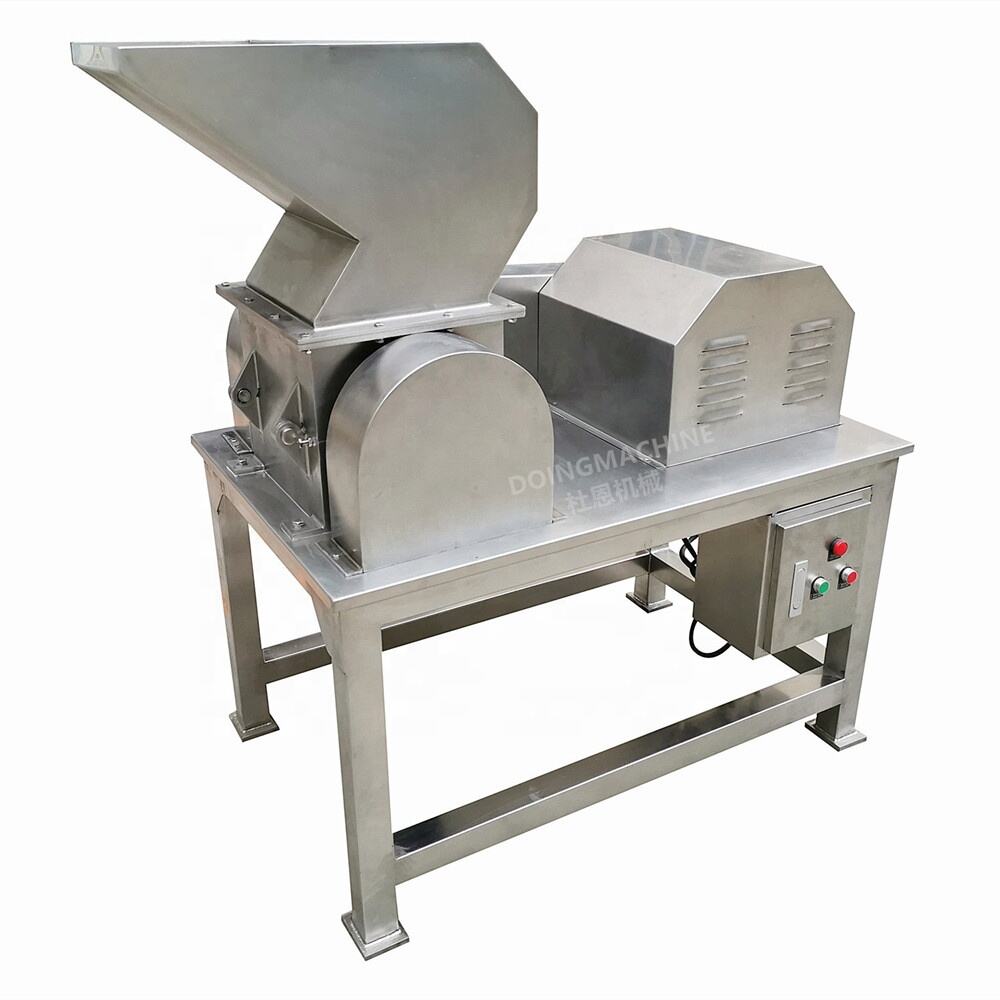

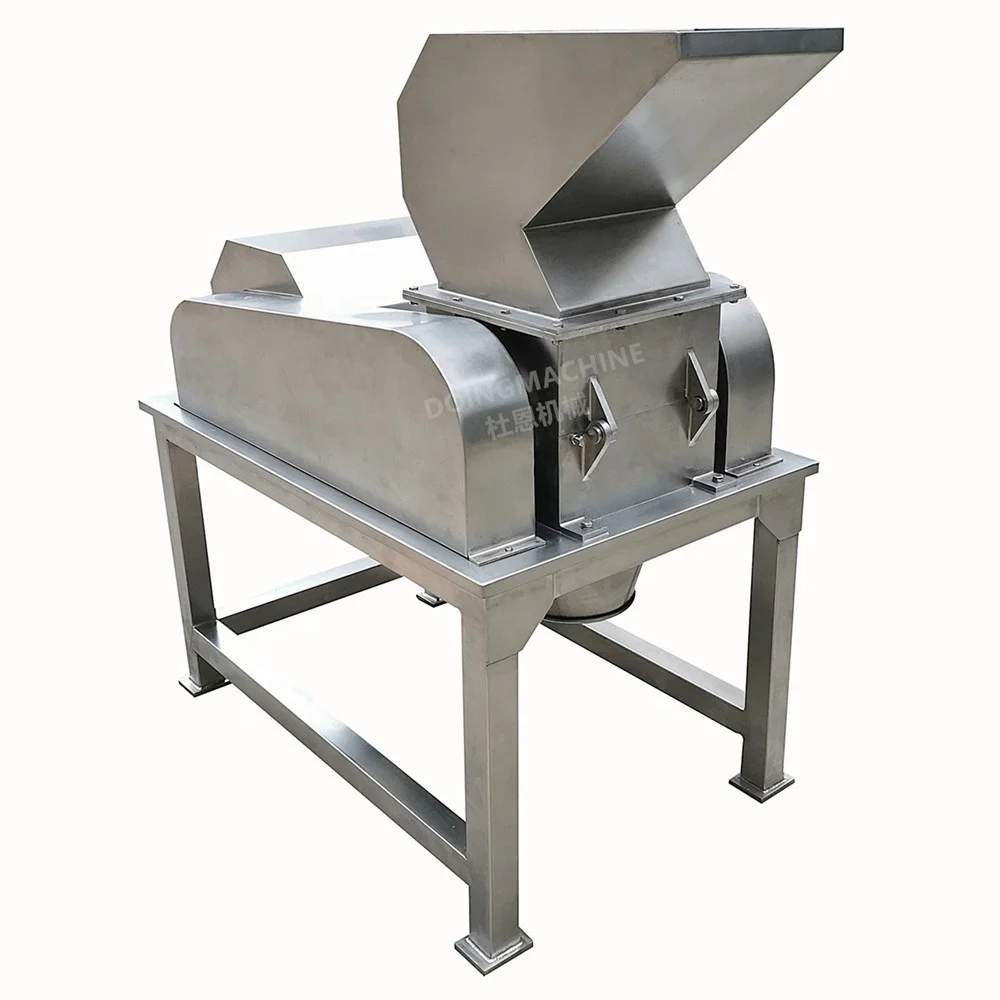

                  Table-type cutter mill


Technical advantages


1. Robust,simple and compact design requires minimum maintenance;

2. Made by SUS304 or SUS316 and mirror polished to meet GMP standards.

3. Alloy steel cutting knives.

4. Very easy and convinent for cleaning, changing sieve and cutting knives.

5. Different particle size can be achieved by changing sieve.

6. It is suitable for cutting wide range of products with little limilation on hardness, softness and fiber content etc.

7. Rotary knife speed is adjustable to get very gentle shredding process, which can considerably reduce fine paticles.



Main technical parameters

Model
CSJ-200
CSJ-300
CSJ-400
CSJ-600
Capacity  kg/h
80-300
100-800
200-1000
500-1500
Feed size  mm
≤100
≤100
≤100
≤100
Product size  mm
0.5-20
0.5-20
0.5-20
0.5-20
Rotating speed   RPM
400
400
400
400
Motor power  KW
3
4
5.5
11
Dimension LxWxH mm
900X600X1440
900X700X1440
900x800x1440
1000x900x1440
Weight  KG
200
300
380
500
Detailed Images
Rotary knife cutter mill for dried fruits and vegetables factory

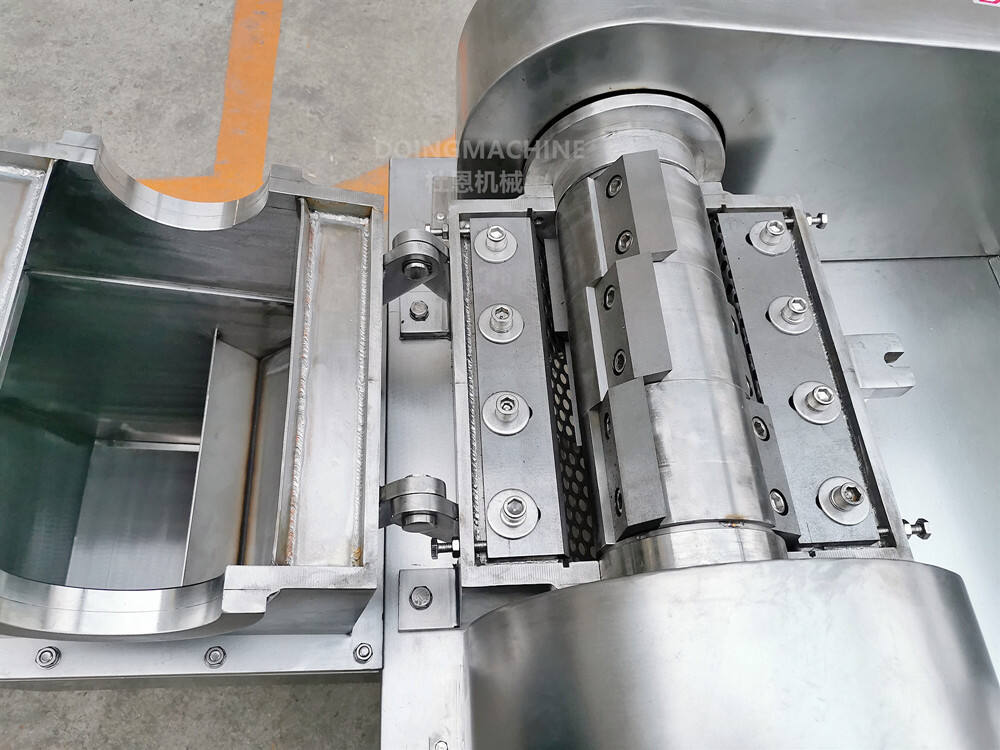

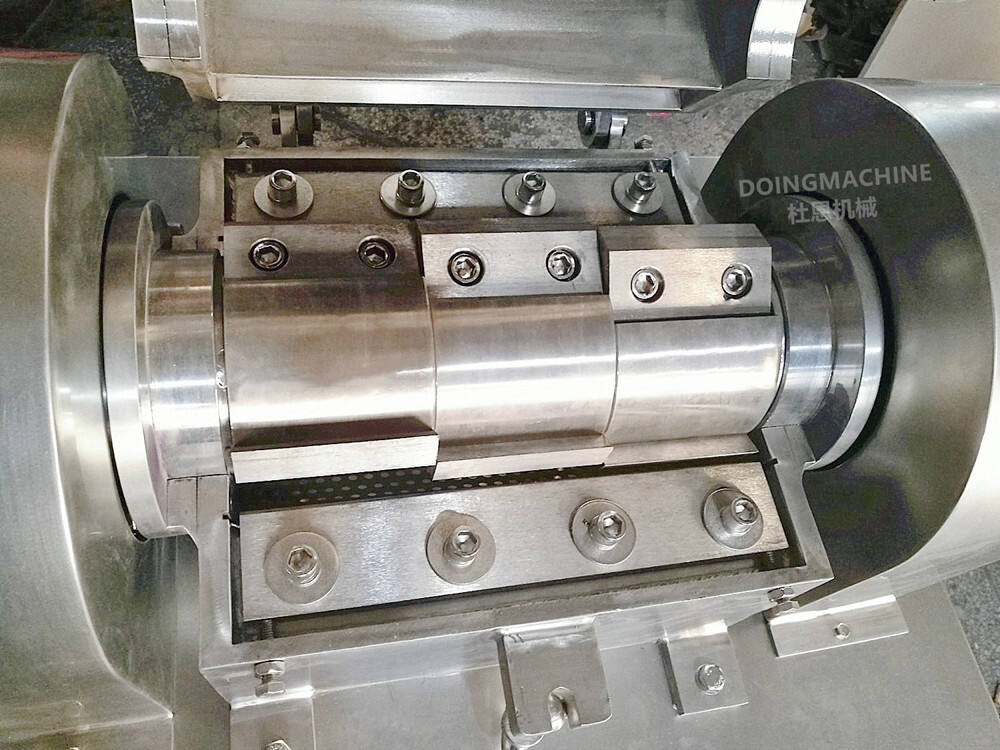

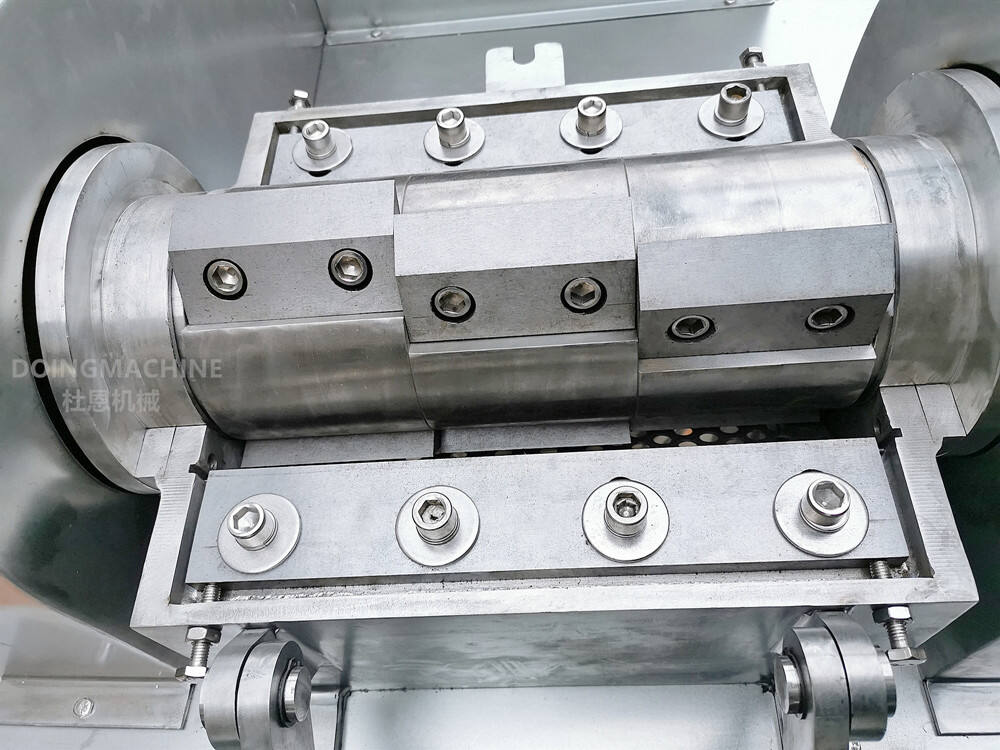

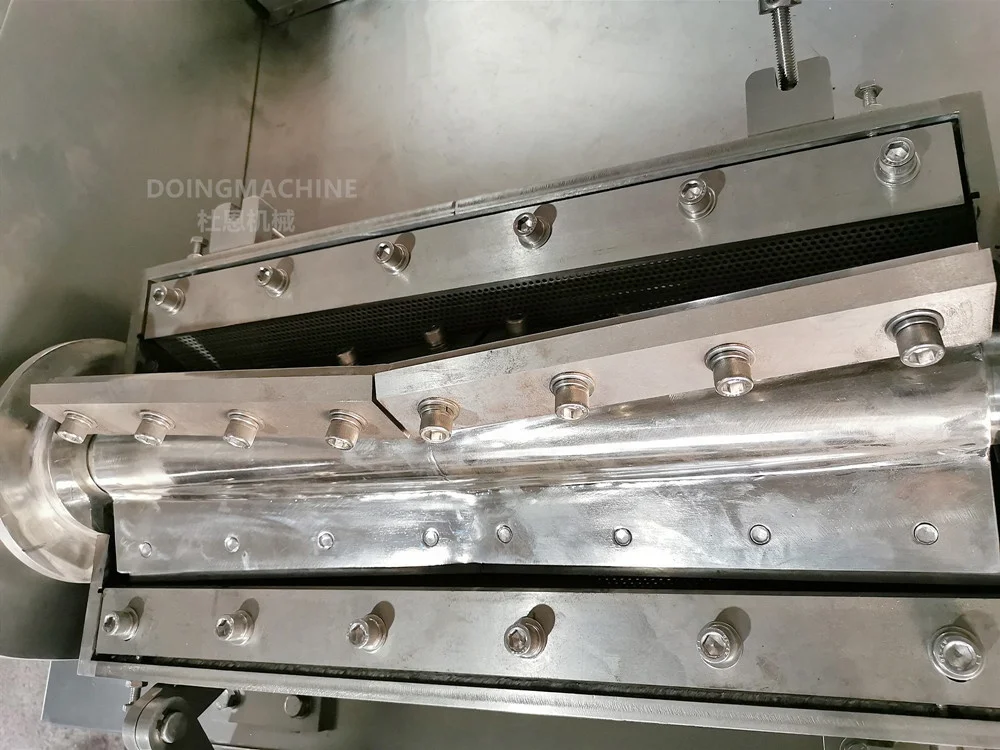

                            Alloy steel cutting knives

                  Well polished and easily dismantable

Rotary knife cutter mill for dried fruits and vegetables supplier

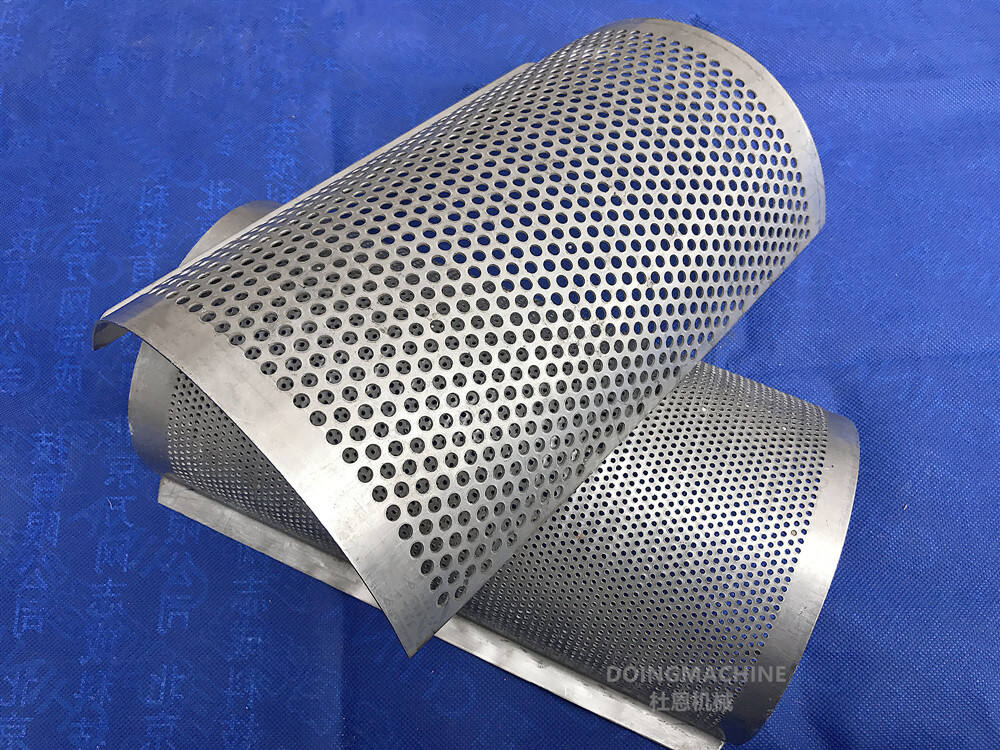

                                   Perforated sieves

                              Hole size:  2-20mm

Rotary knife cutter mill for dried fruits and vegetables manufacture

                     Milling hamber: Easy for cleaning

Rotary knife cutter mill for dried fruits and vegetables manufacture

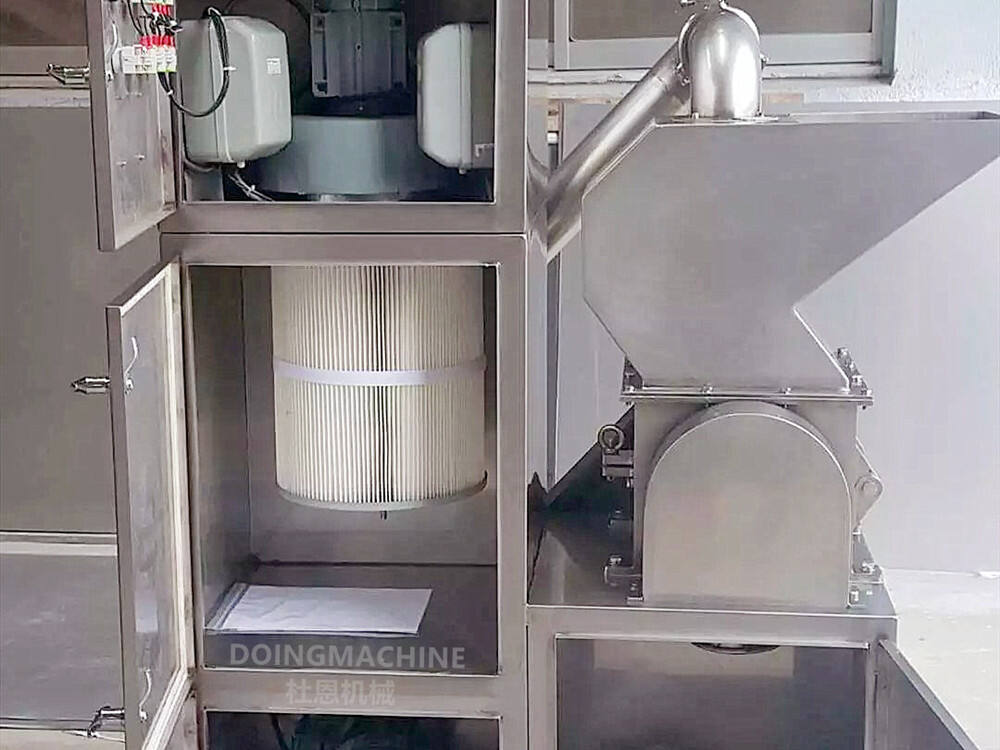

                     Dust collector: vacuum most dust


Typical applications
Rotary knife cutter mill for dried fruits and vegetables manufacture

                      Dried herbs

Rotary knife cutter mill for dried fruits and vegetables factory

                      Dried spices

Rotary knife cutter mill for dried fruits and vegetables manufacture

                  Sugar/salt crystal

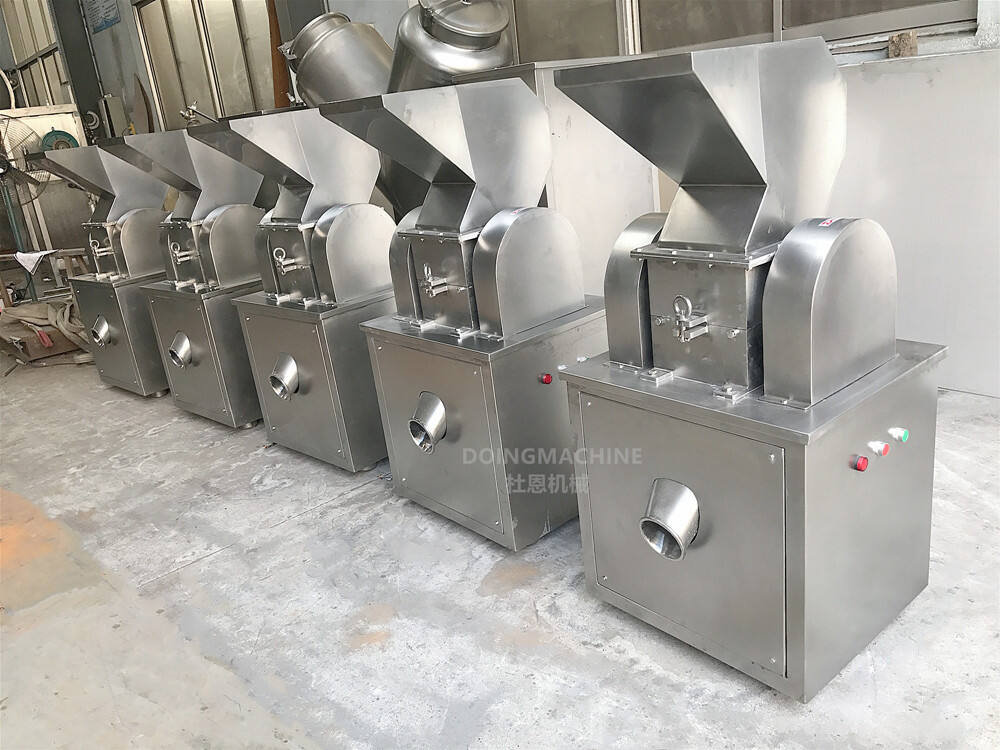

Our Factory
Rotary knife cutter mill for dried fruits and vegetables manufacture
Rotary knife cutter mill for dried fruits and vegetables manufacture
Rotary knife cutter mill for dried fruits and vegetables details
Rotary knife cutter mill for dried fruits and vegetables manufacture
FAQ


Q: What information should be provided in order to get a proposal or quotation?
A: Our rotary knife grinding machine can be customerized. Before we can work out a detailed quotation, we have to know the following information:

1) What product you are going to process
2) Product size before cutting/milling
3) Required final product size
4) Process capacity in kg/h

Q: How the machine will be delivered ?
A: The granulator is packed in plywood box for shipping

DOING MACHINE


Presenting the viewed Rotating blade cutter factory for dried out vegetables and fruits - a first-class item towards easily treatment dried out fruits veggies.


This Rotating blade cutter factory for dried out vegetables and fruits can easily extremely rapidly reduce through a wide variety of dried out vegetables and fruits, coming from difficult origin veggies towards fragile dried out fruits along with its own razor-sharp durable blade cutter rotating body. The flexible cutters for precise cutting, guaranteeing outcomes that are continuous each time, whether you are wanting to produce completely attire pieces or even chunkier items for utilize within a variety of dishes.


Comprised of resilience in thoughts, the DOING MACHINE Rotating blade cutter factory for dried out vegetables and fruits is developed towards last. Its own durable stainless-steel building it might manage also one of the absolute most difficult of components, while its own efficient electric motor assurances dependable efficiency however in higher intensity manufacturing atmospheres.


Because of its own Rotating style blade cutter factory for dried out fruits easy-to vegetables-use a wind towards operate. Simply tons your fruits being dried out veggies into the chute, change the cutters as preferred, switch on the device. Its own automated consuming body assurances soft decreasing treatment constant the dedication had to procedure your elements.


This Rotating blade cutter factory for dried out vegetables and fruits is not simply ideal for utilize in industrial kitchen areas, however additionally for home appearing cooks towards create tasty healthy and balanced great clean dried out fruit out veggie deals with in your house. The DOING MACHINE Rotating Blade Cutter Factory is one of the absolute most fantastic gadget towards work quickly rapidly whether you are wanting to create your course blend or even create diy fruit natural leather.


This Rotating blade cutter factory for dried out vegetables and fruits is wonderfully created along with safety in your ideas along with its own remarkable efficiency. Its own confined electric motor blade body implies that the fingers palms remain risk-free while being used, while its own easy-to-clean style assurances quick use upkeep simple and easy.
